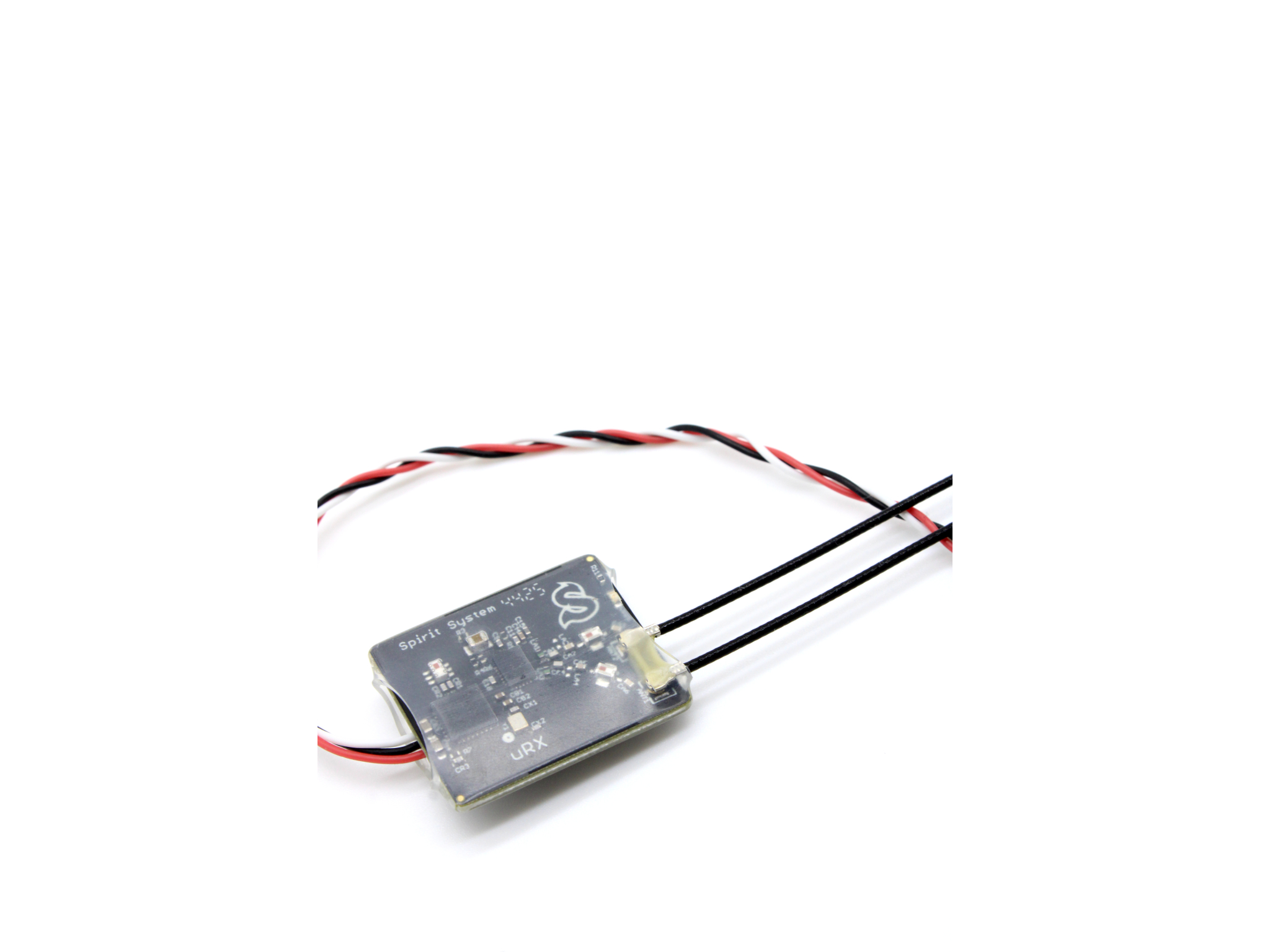

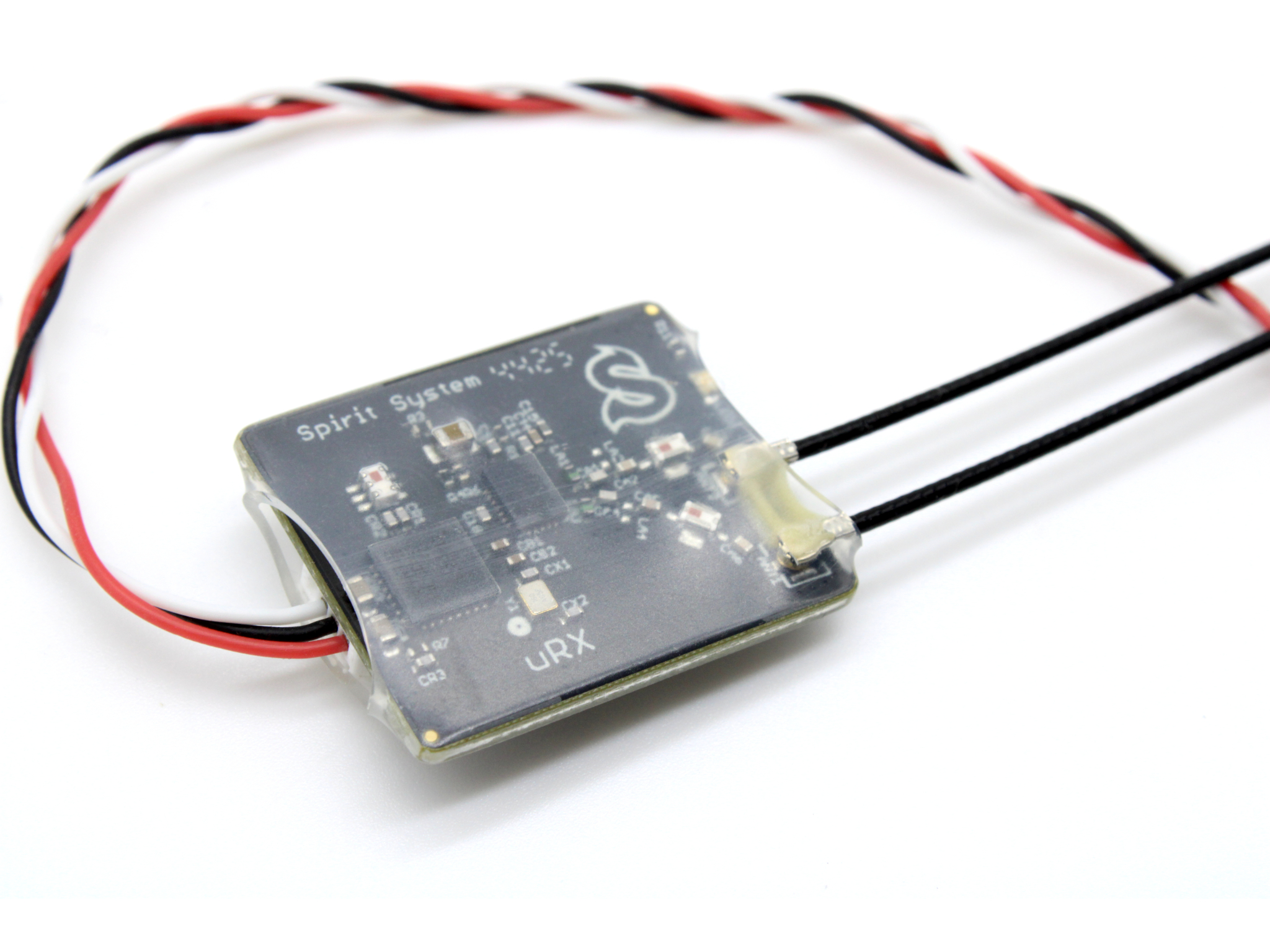

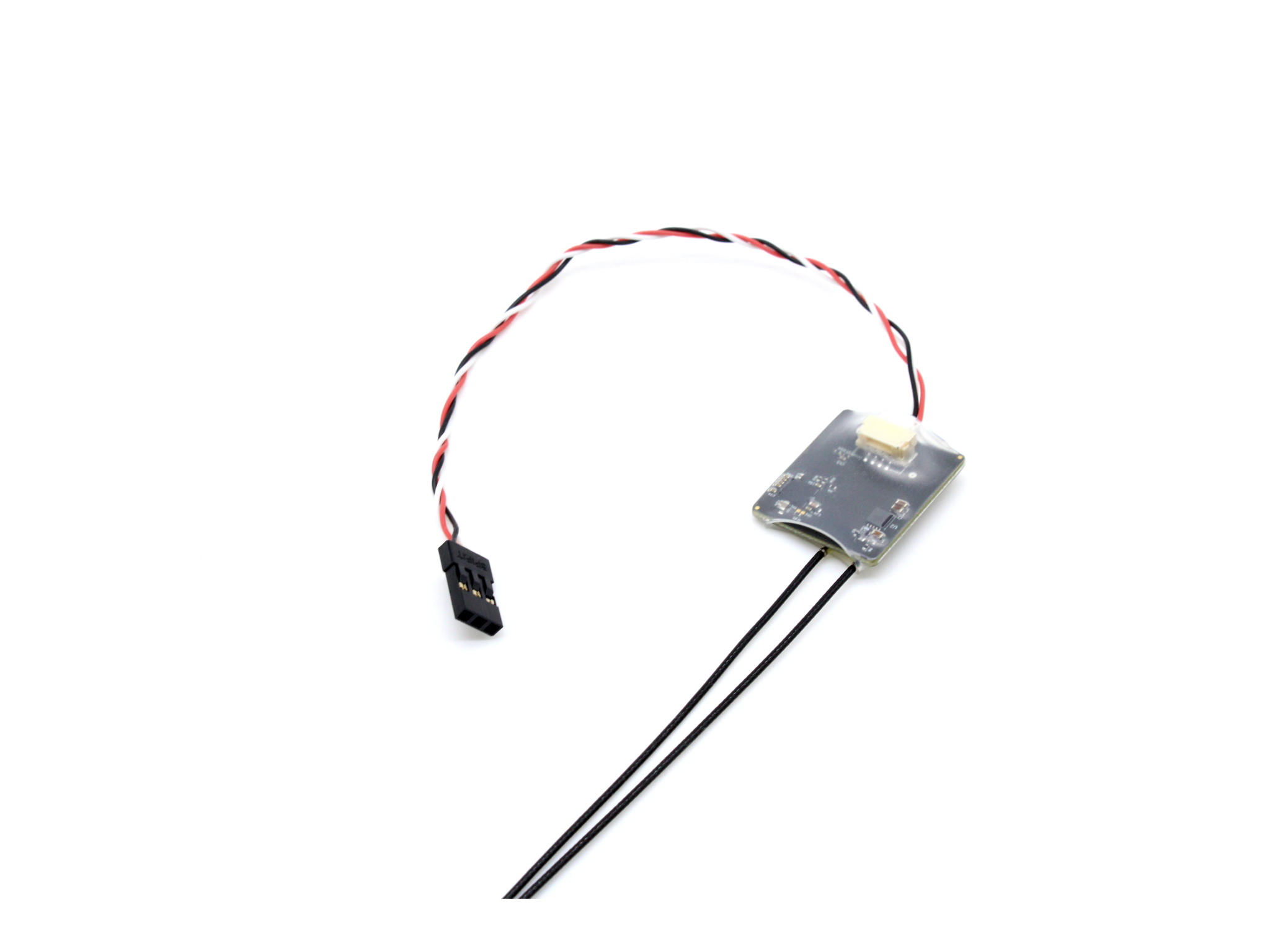

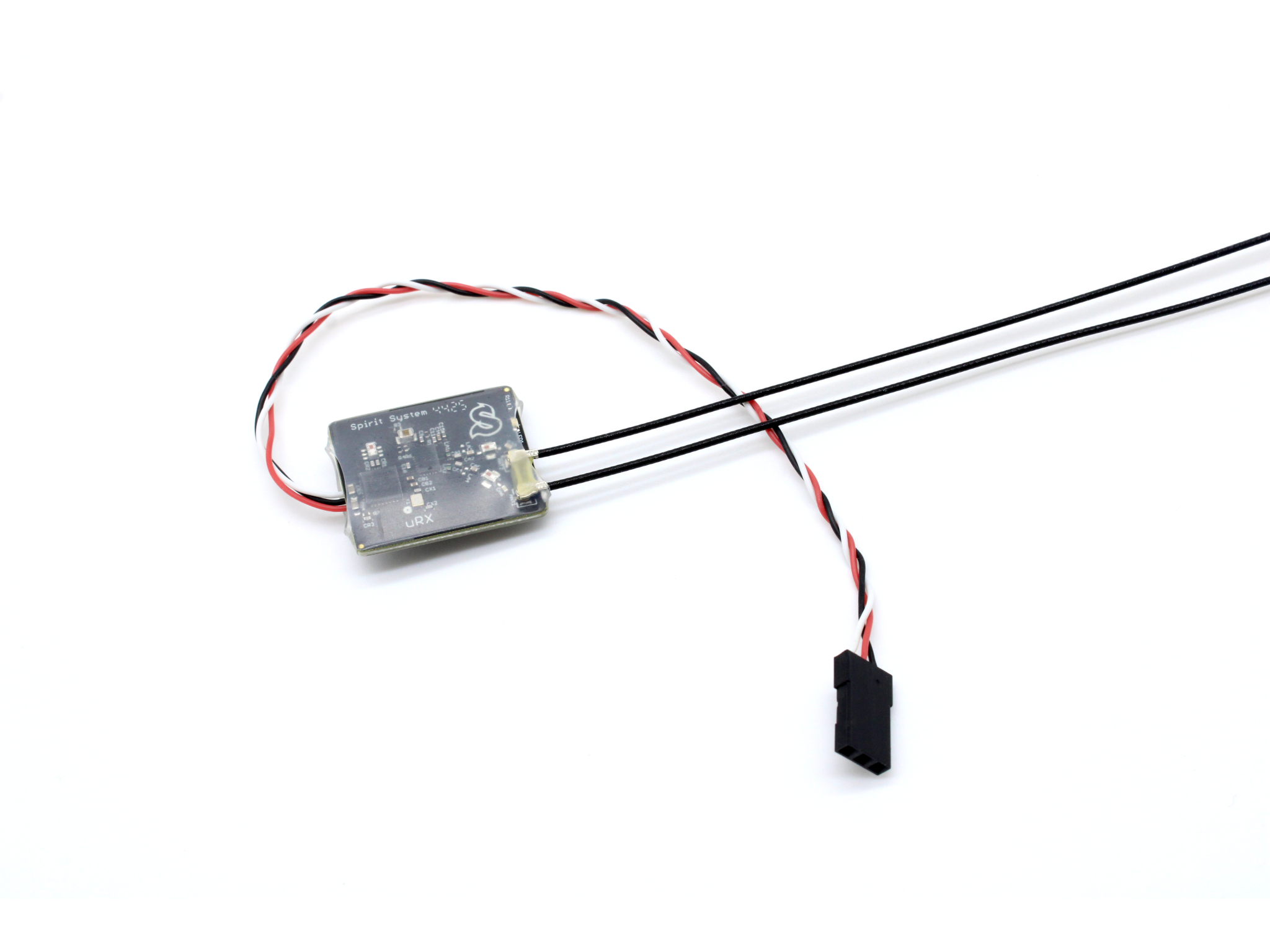

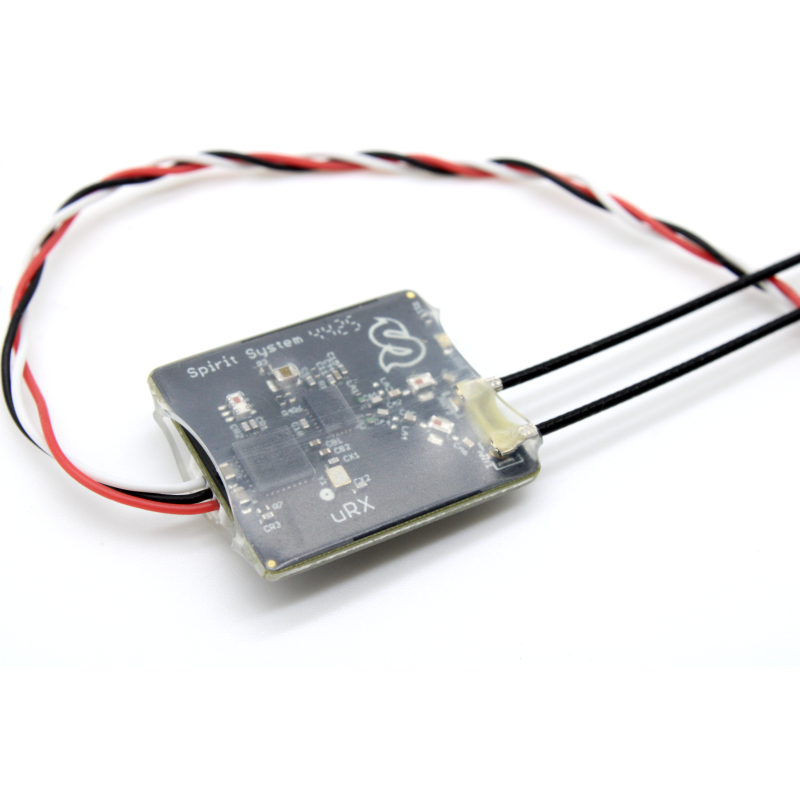

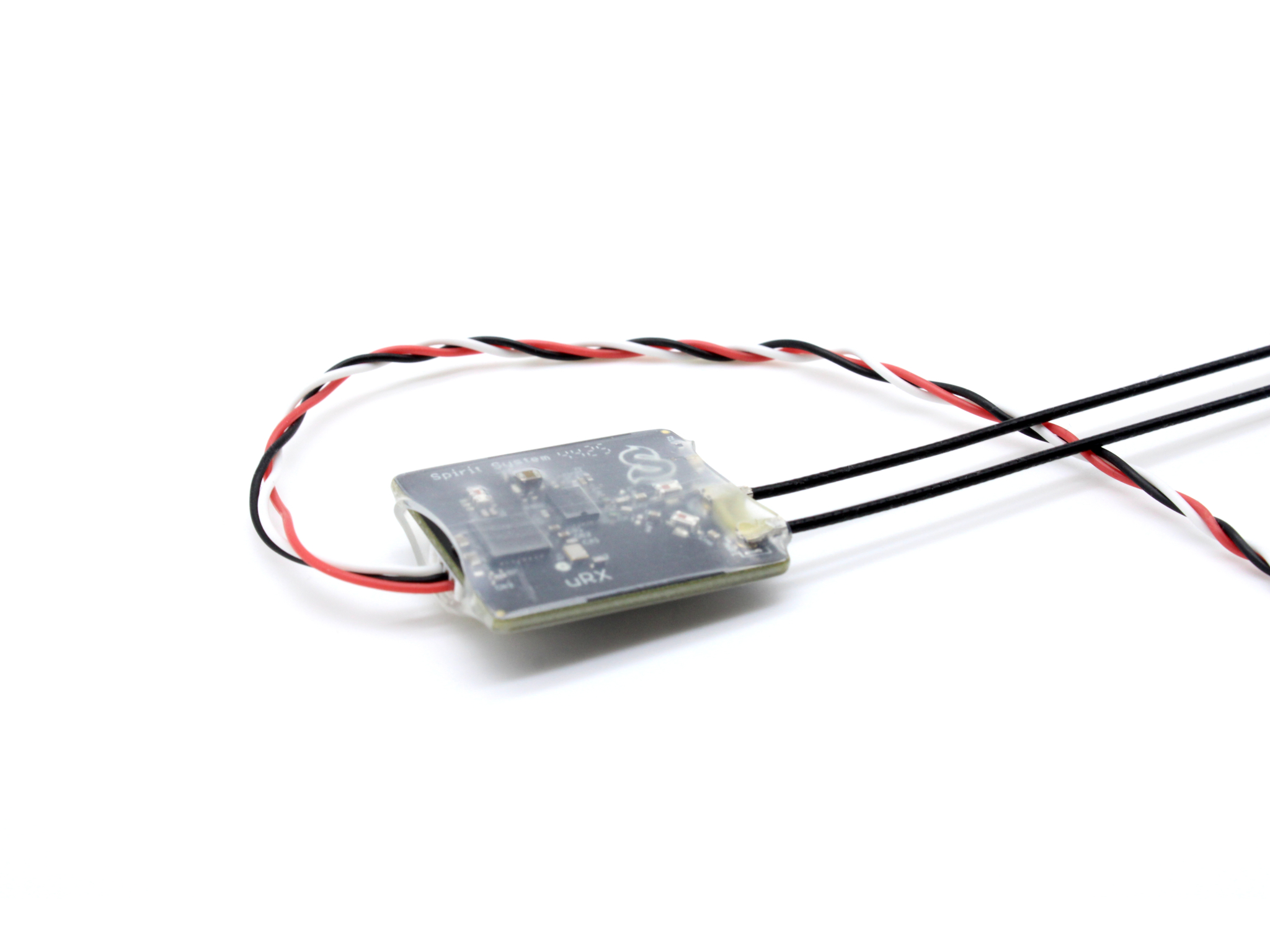

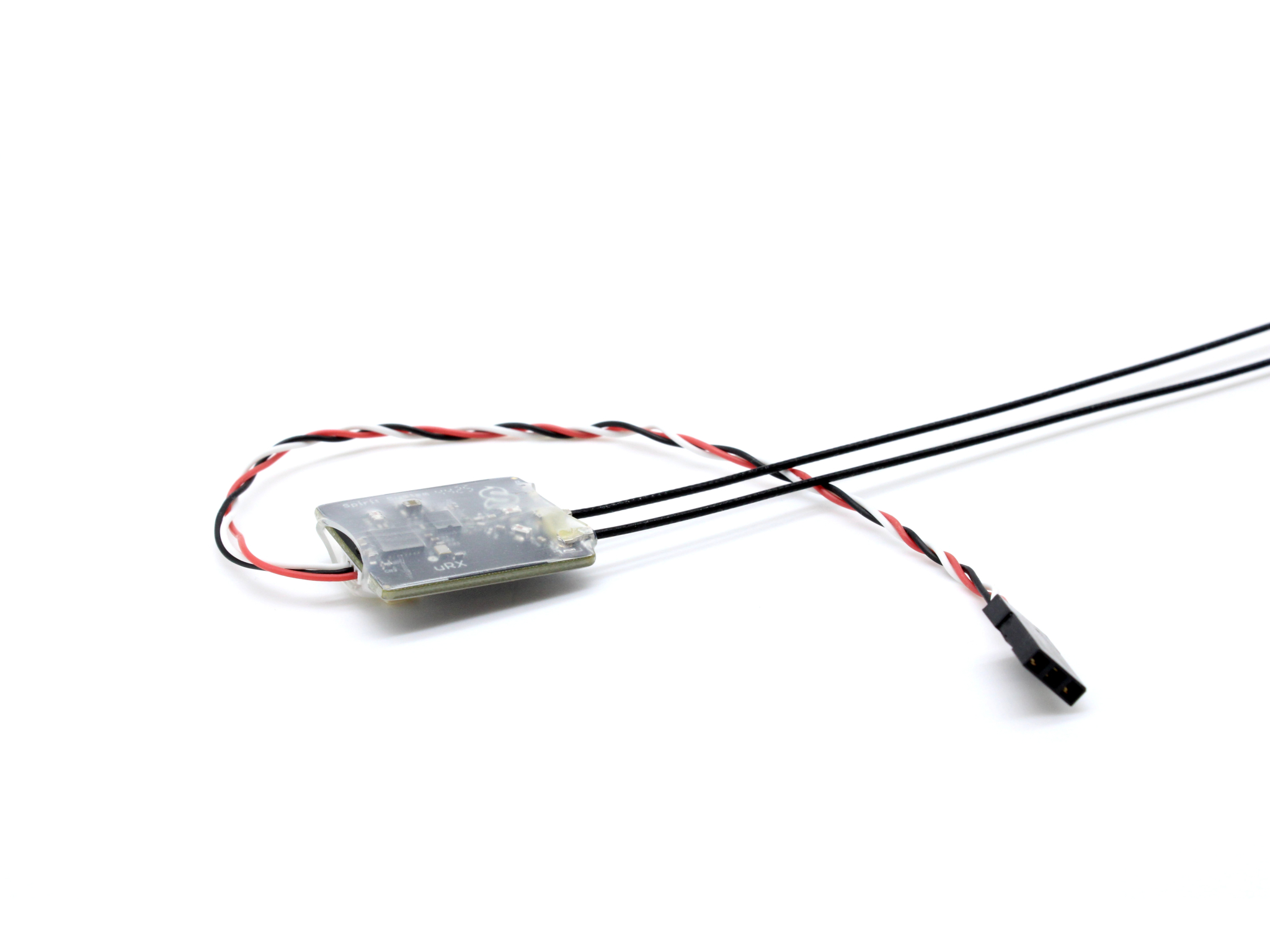

Receiver

• Spirit Wave 2.4Ghz full-range telemetry receiver
• Full featured 30+ channels available
• Blazing fast 333 Hz transmission
• High interference immunity
• BEC Voltage measurement

Features

• Gold plated PCB with Pb-Free soldering
• JST-GH Connector
• 1x Auxiliary Telemetry wire
• Reverse Polarity Protection

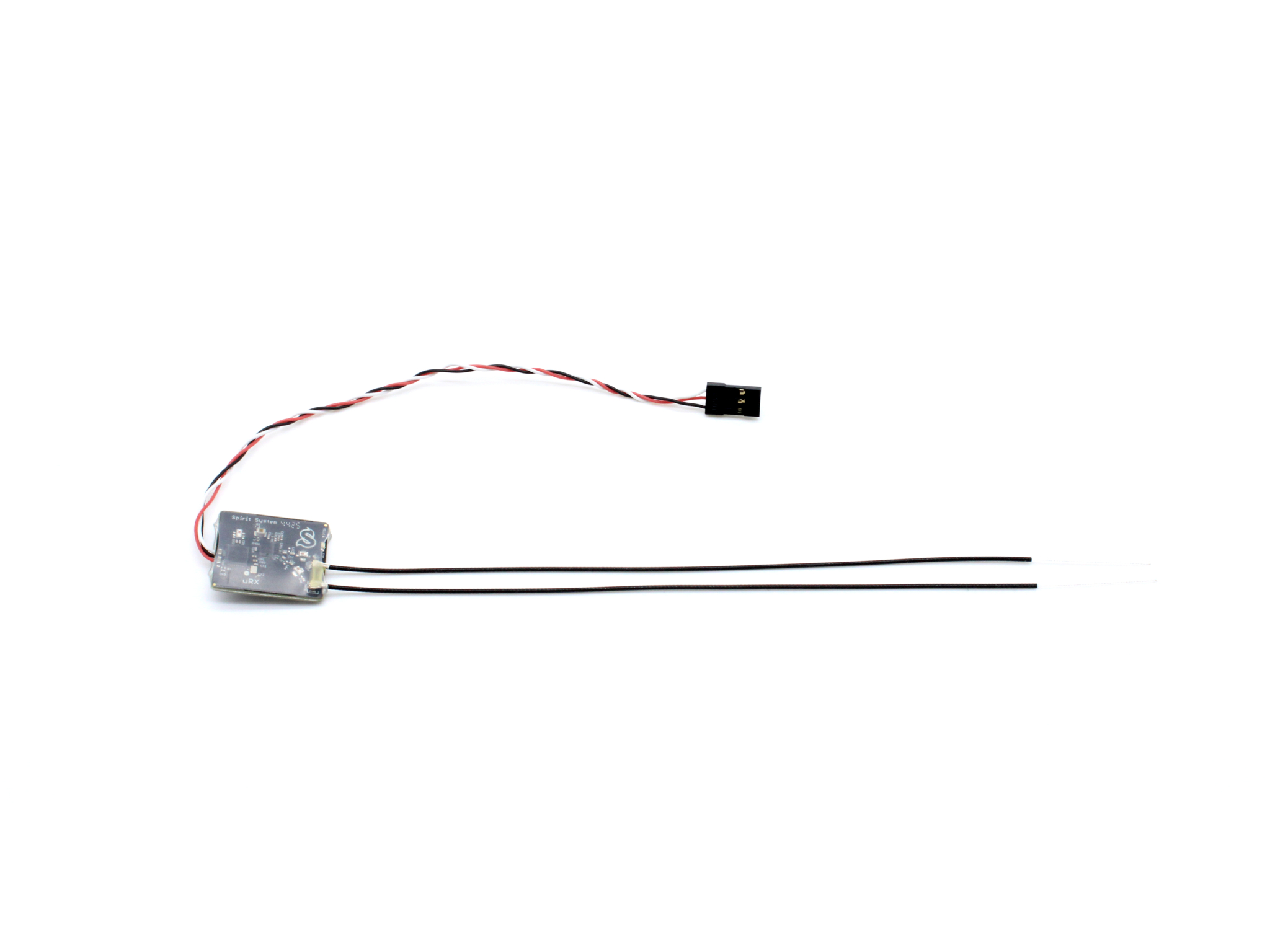

• 2x 20cm Full-range, replaceable antennas
• Max. RF power: 27 dBm, 500mW
• Receiver sensitivity: -106 dBm
• Suitable for all Spirit units
• Full Integration with Spirit Wave + Spirit units
• Support for Spirit RX, PWM, S-BUS, SRXL protocols
• Easily Updateable
• Suitable for all model classes

Specifications

• Dimension: 22.4x26x7mm, weight: 5g
• Power supply: 3 - 15V
• Operating temperature: -10°C to 50°C

Package Content

• Spirit μRX

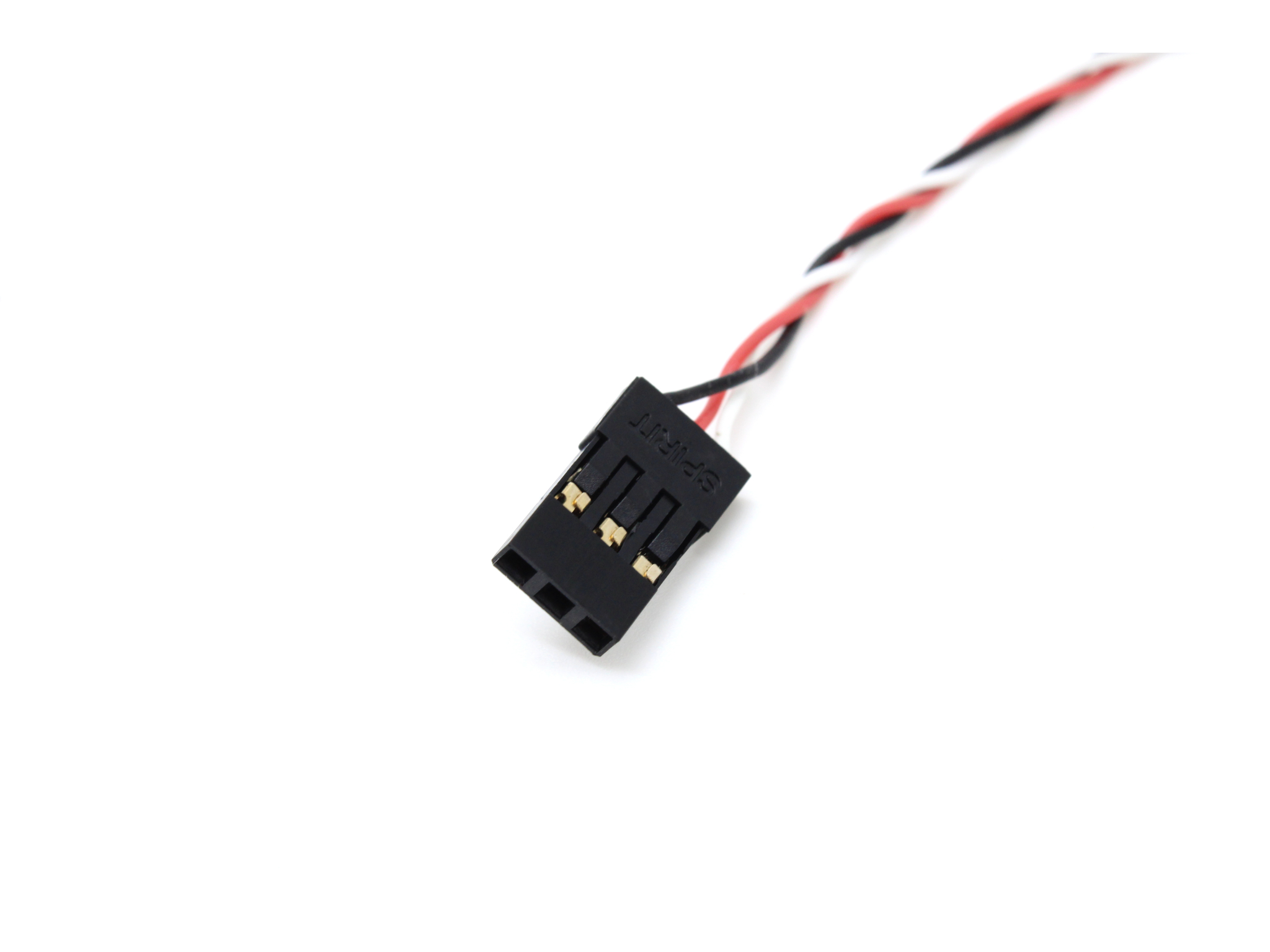

• 20cm Cable

Compatibility

• Spirit 1
• Spirit Pro
• Spirit Aero
• Spirit 2
• Spirit 3
• Spirit RS
• Spirit GT
• Spirit GTR
• Spirit W1 (as Backup)
• Third-party FBL controllers
• Flybar Helicopters
• Planes
• Copters
• Boats
• Cars

Warranty

• 2 year warranty for the original purchaser
